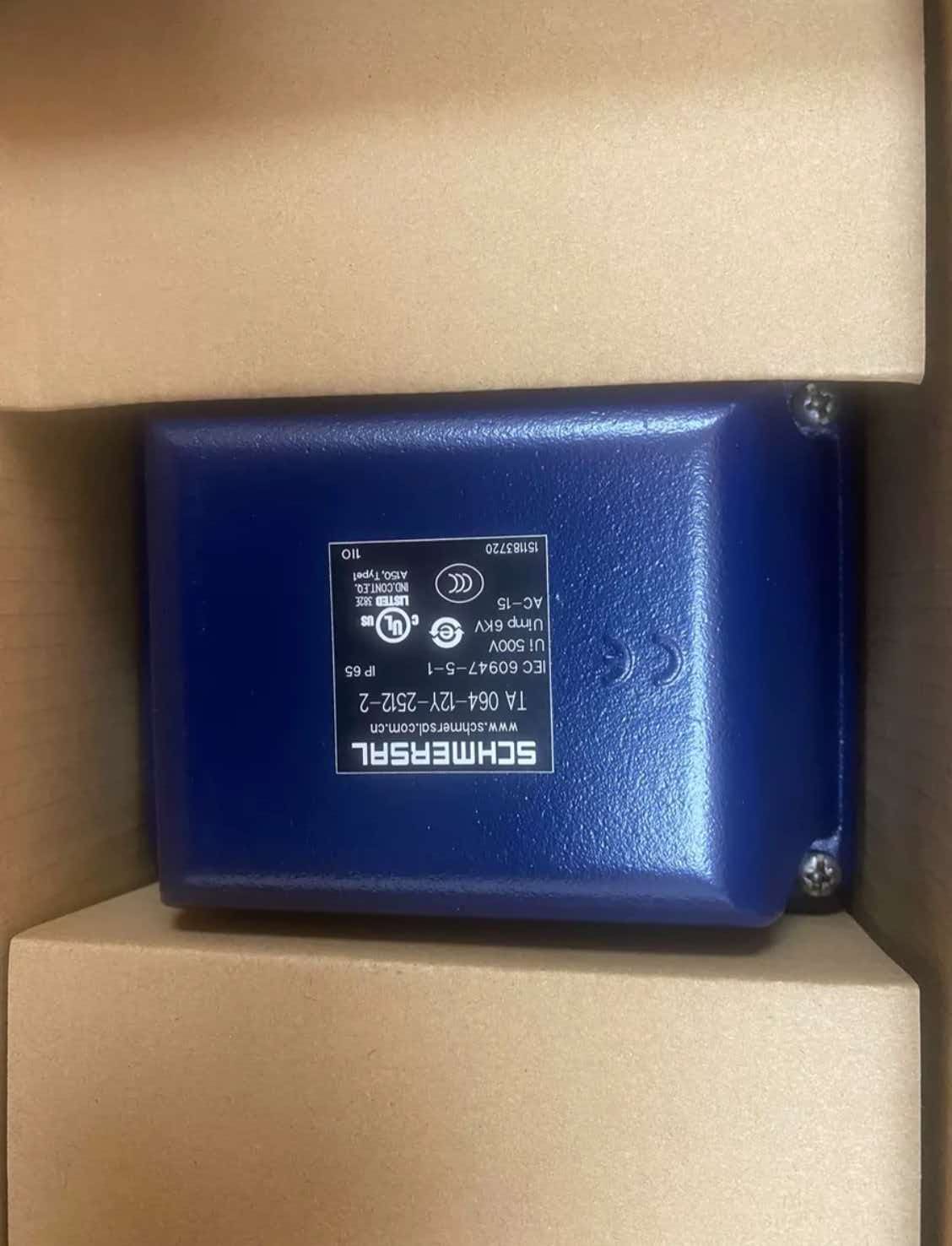

Standard general-purpose limit switches cannot withstand heavy impact, continuous vibration, outdoor dust, high temperature and humid harsh environments. Schmersal heavy-duty limit switches from Germany are developed specifically for rugged heavy-industry applications. The core product portfolio covers four major series: T/M441, T/M250, BS655 and T064, built with high-strength cast iron housings as heavy-duty electromechanical position switches. The actuator lever is driven by mechanical collision to switch contacts for travel end protection, anti-collision warning, belt drift monitoring, lifting upper/lower limit control and material level detection. Designed for high-force mechanical actuation and equipped with positive-opening safety contacts, they satisfy safety control requirements for heavy machinery operating nonstop over long periods.

20 mainstream widely used models of Schmersal heavy-duty limit switches:

T441-11Y

M441-02Y

TJ441-11Y-T

TR441-01Y

T250-11Y

M250-02Y

TD250-01Y

T2A064-12Y-2512-4

T064-03Y

BS655-Z22-G

BS655-T22

EX-T441-11Y (Explosion-proof Version)

MR441-11Y-T

T441-2C-Y

T250UE-11Y

BS655-Z33

T441L-02Y

M250D-11Y

T067-11Y

BS655-Z22-DN

Suitable for high-load harsh operating conditions, these switches are widely deployed in port cranes, container quay cranes, mining machinery, metallurgical and steel production lines, belt conveyor systems, construction machinery, tower cranes and lifting platforms, marine and port equipment, mixing plant machinery, waste recycling equipment, railway maintenance vehicles, outdoor bulk material conveying equipment, large hydraulic machinery, auxiliary coal mining equipment and chemical explosion-proof production lines. Typical applications include over-hoist protection for cranes, conveyor belt drift detection, end-of-travel limiting for moving trolleys, position feedback for high-temperature furnace doors and bulk material level monitoring.

Compared with standard plastic housing limit switches, Schmersal heavy-duty limit switches feature five core advantages:

First, superior mechanical strength with outstanding shock and vibration resistance. Integrated grey cast iron housings resist heavy mechanical impact and persistent vibration. Hardened actuator levers sustain high mechanical driving force without deformation or fracture, ideal for outdoor mobile heavy-duty machinery.

Second, excellent environmental resistance. Standard versions achieve IP65/IP67 protection class, with selected variants supporting IP69K. Wide-temperature models operate reliably between -40℃ and +200℃, resisting dust, mud, rainwater, coolant and high-temperature metallurgical dust. ATEX-certified explosion-proof variants are available for hazardous zones in chemical and mining industries.

Third, high contact rating and multi-contact configurations. Snap-action and slow-action contact types are optional, with up to multiple contact sets and positive-opening NC contacts. High rated contact current enables direct control of contactors without intermediate relays, simplifying control circuits for heavy machinery. Gold-plated contact versions are available for low-level signal transmission.

Fourth, comprehensive actuator accessories and flexible commissioning. A wide range of actuators are offered, including roller levers, fork levers, straight plungers, offset rollers and weight assemblies. Actuator heads support multi-angle rotation adjustment for flexible mounting, compatible with limit detection, belt drift monitoring and material level measurement.

Fifth, long-term stable performance and complete certifications. Proven by decades of field applications in heavy industry for extended service life. The product range holds CE, GL marine certification and ATEX explosion-proof approvals, complying with export standards for port, marine and mining equipment. As passive mechanical devices, they are immune to electromagnetic interference and deliver lower failure rates than electronic sensors in complex heavy-industry environments.

In extreme working conditions within mining, port and metallurgical sectors, ordinary limit switches often suffer housing damage, mechanical jamming and water ingress failures. Featuring robust cast iron construction, wide environmental adaptability and strong load capacity, Schmersal heavy-duty limit switches are the preferred end-travel protection components for heavy machinery. Whether deployed in indoor production lines or outdoor field equipment, they consistently deliver stable position limiting and safety monitoring, providing reliable travel protection solutions for all types of heavy-duty equipment worldwide.
